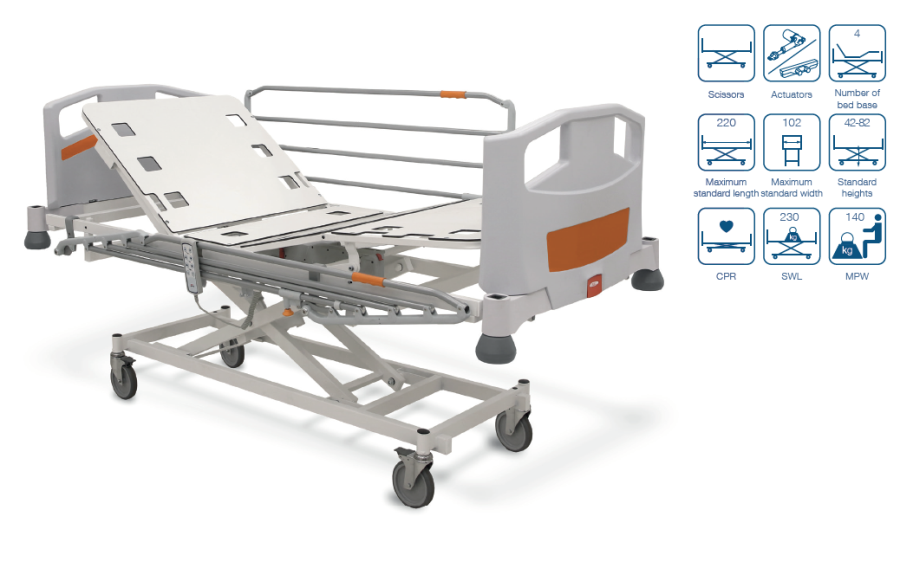

Completely electric articulated hospital bed. Equipped with lifting system by scissors and
double compact actuator to articulated the bed bases.
Some of their principal features are:
To transport easier:
It has four castors (Ø15 cm) with high rolling, wear and rust resistance. It has a minimum
noise emission whilst moving. One of them is directional. Each wheel has a individual breaking system.
Encourage the welfare of patient:
Electric elevator trolley, with antistatic protection, with drive controlled by a handheld patient unit. Equipped with 8,000N motorization and IPX6 protection.
The design of the bed with a greater distance between the wheels gives better stability and it helps to facilitate the work
with patient lifters in narrow rooms with limited space.
The bed is also equipped with manual CPR which is activated via a lever located on the motor, which releases the engine in
case of emergency.
Total length with headboard and footboard 220 cm. ± 1 cm.
Total width with side rails 102 cm. ± 1 cm.
Height of bed base with Ø150 metallic wheels
(without mattress)
Minimum 42 cm. ± 1 cm
Maximum 82,2 cm. ± 1 cm
Diameter of wheels 15 cm.
Angle of backrest tilting 70º ± 5º
Angle of legrest tilting 35º ± 2º
