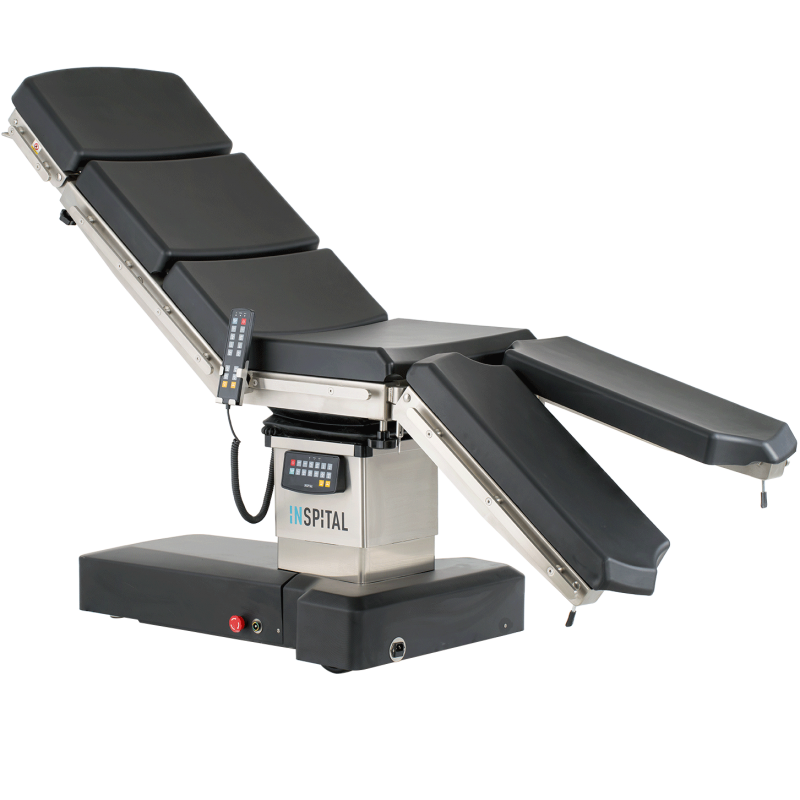

Bariatric version of Inspital tables with wider table top and higher lifting capacity (360 kgs) can meet specific requirements of this kind of operations
ELECTRICAL MOVEMENTS
• Height
• Back Rest
• Trendelenburg
• Reverse Trendelenburg
• Lateral Tilt
• Sliding
• Central Locking
MECHANICAL MOVEMENTS
• Head Rest
• Leg Rests, Up / Down
• Kidney Elevator(optional)
SIZES
• Width x Length : 550×2200 mm (OT80.20)
• Height (max) : 980 mm
• Height (min) : 580 mm
• Mattress thickness : 70 mm
*Max.& min. dimensions are measured without mattress.
TECHNICAL FEATURES
• Model : OT80.20
• Sliding Movement : 300 mm
• Lateral Tilt Movement : 20° / – 20°
• Back Rest Movement : 80° / – 45°
• Trendelenburg : 30°
• Reverse Trendelenburg : : – 30°
• Leg Rest Up / Down : : 30° / – 80°
• Head Rest Movement : 30° / – 90°
• Flex / Reflex Position : 225° / – 100°
• Width x Length : : 560×2200 mm
• Height (min) : 595 mm
• Height (max) : 1035 mm
• Mattress Thickness : 70 mm
• Castors Diameter : Ø 100 mm
• Max Patient Weight : 360 kg / 800 Ibs.
• Kidney Surgery Position : 150º (optional), OT80.20K
• Stainless Steel T-base : Optional, OT80.20S : –
• Visco mattress : Optional, OT80.20V
